TTV-Tutorial: Web Data Collection – Part 1 (Data Extraction)

Web data collection is a systematic process of gathering information from the web which may cover variety of fields. Many enterprises today take its advantage utilizing various web data collection methods to simplify and better analyze their working environment thus help their business raise on a higher scale. Such services may include obtaining product and/or pricing information, gathering of news, blog posts, articles, compiling of contact lists or data sets from websites, analyzing of competitors on the market and numerous other.
Microworkers platform through its (TTV) extension is quite well optimized to meet web data collection demands easily and effectively.

In this (TTV) Tutorial we will focus on Data Extraction methods and guide you through the Template adaption for this particular purpose. For the guiding example we have created a correlative Template to help us extract the contact information from university websites.

 Guide is mainly based on TTV’s Template Editor in Source Code

Let’s see now how our Template looks like:

____________________________________________________


Template Preview: (requires Microworkers account login): Extract Contact Information

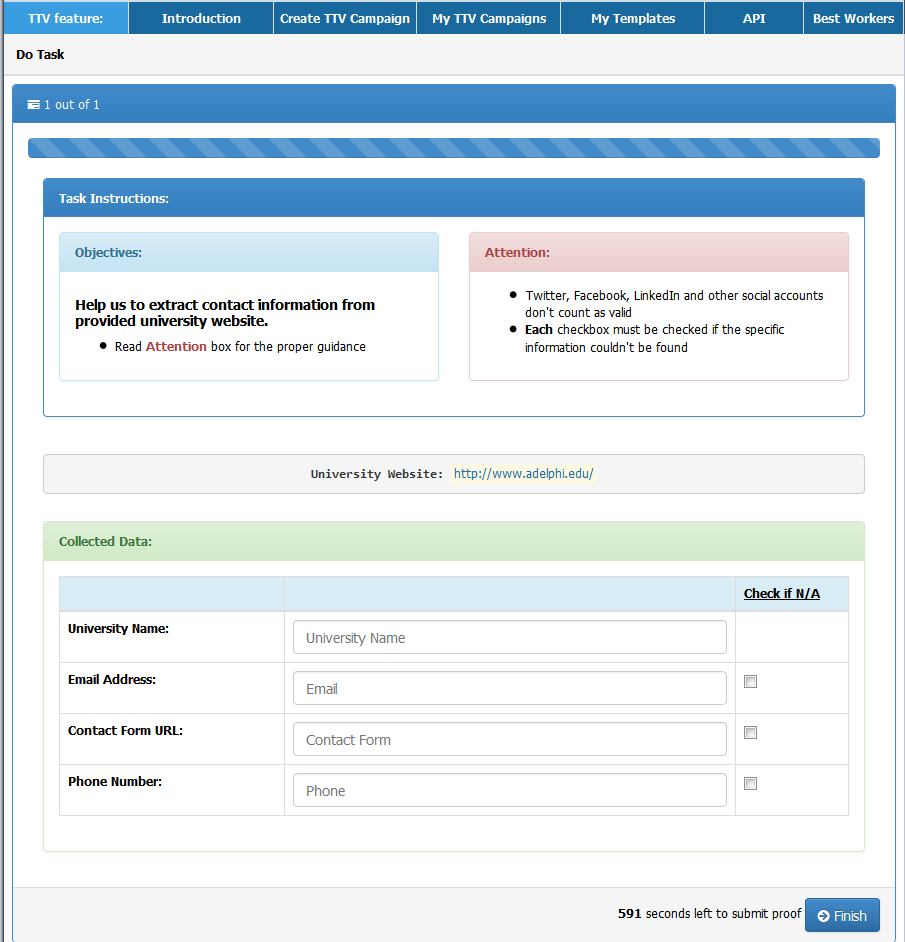

Screen-capture of live task (click image to enlarge): campaign img

____________________________________________________


Similarly to previous Tutorial where Template config for data image transcription requirements is explained, we are going to lead you throughout each code snippet in order to facilitate the context.


  • Task Instructions Panel

Standardly, we have listed main instructions inside Bootstrap Panels creating two sub-panels “Objectives” and “Attention” one besides another (“row” class) using Bootstrap’s Grid System.

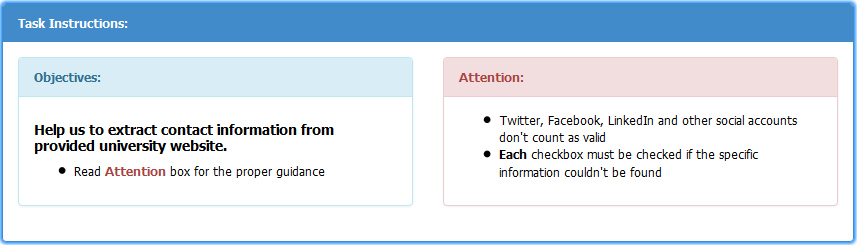

primary panel image

<!-- Instructions -->
<div class="panel panel-primary">
<div class="panel-heading">
<strong>Task Instructions:</strong></div>
<div class="panel-body">
<div class="row">

<!-- "Objectives" Panel -->
<div class="col-sm-6">
<div class="panel panel-info">
<div class="panel-heading">
<strong>Objectives:</strong></div>
<div class="panel-body"><h5><strong>Help us to extract contact information from provided university website.</strong></h5>
<ul>
<li>Read <font color="#a94442"><strong>Attention</strong></font> box for the proper guidance</li>
</ul>
</div>
</div>
</div>
<!-- End "Objectives" Panel -->
<!-- "Attention" Panel -->
<div class="col-sm-6">
<div class="panel panel-danger">
<div class="panel-heading">
<strong>Attention:</strong></div>
<div class="panel-body"><ul><li>Twitter, Facebook, LinkedIn and other social accounts don't count as valid</li>
<li><strong>Each</strong> checkbox must be checked if the specific information couldn't be found</li>
</ul>
</div>
</div>
</div>
<!-- End "Attention" Panel -->
</div>
</div>
</div>
<!-- End Instructions -->

(Coding Source: BS Panels, BS Grids, BS Typography)

  • URLs (Universities) Source

Since we have a long list of universities for extracting the information from, we normally need a CSV callback to properly load them into a Template. With CSV approach each assignment will come up with different university URL/link for a User to work on. (Read more on Microworkers CSV approach).

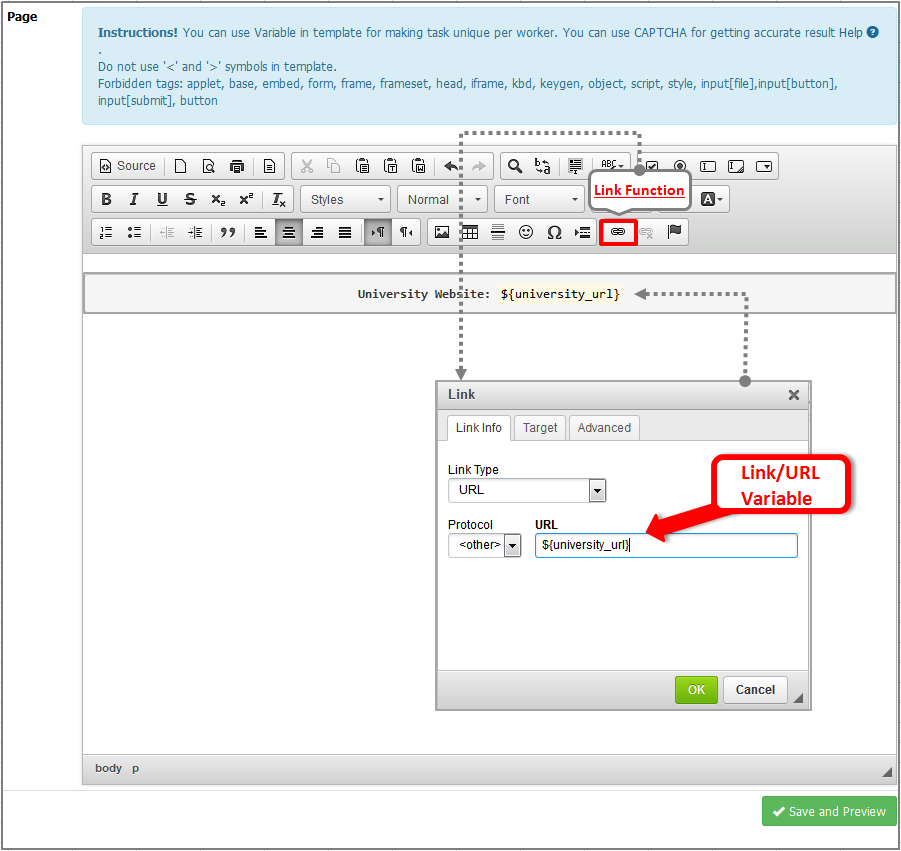

Visual Editor: Click Here

Template doesn’t include a CSV file itself, an option for attaching a CSV will be given later, during the campaign setup


<!-- Csv -->
<div class="text-center">
<pre>
<strong>University Website:</strong>
<mark>
<a href="${university_url}" target="_blank">${university_url}</a>
</mark>
</pre>
</div>
<!-- End Csv -->

(Coding Source: BS Typography, URL/Link Attribute )

  • Data Input

Now, after indicating instructions and URL variable on the Template, the next step is incorporating of data input fields. In order to accommodate visually good approach we pick out Bootstrap Table to place our Input forms into.

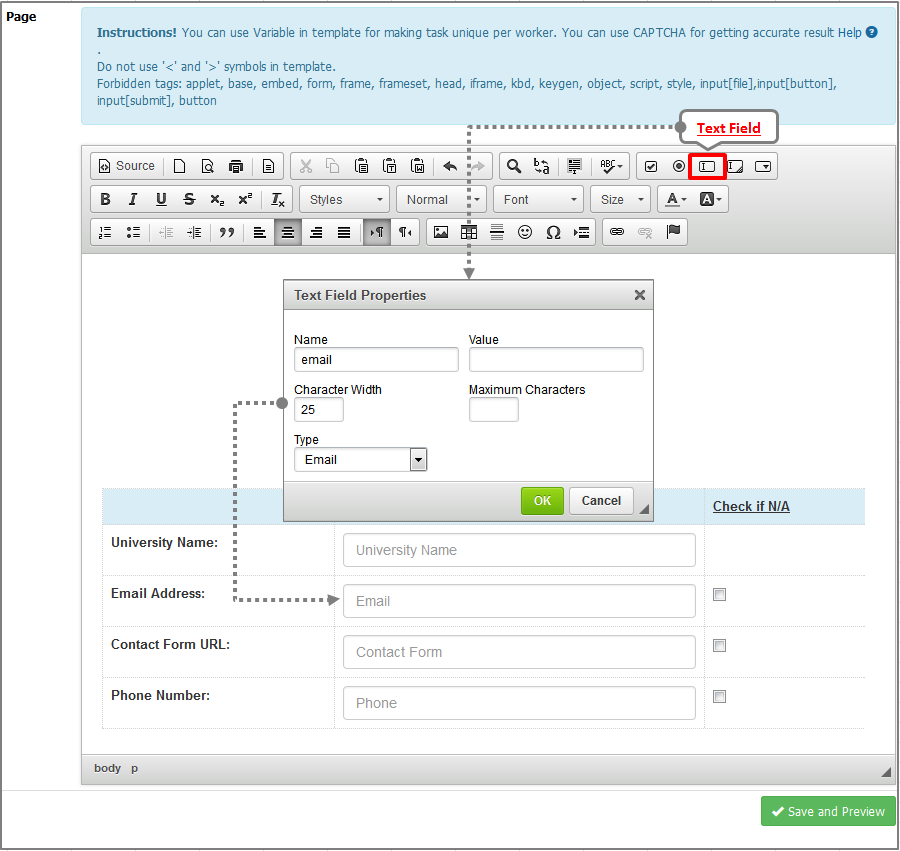

Visual Editor (“Text Field”): Click Here

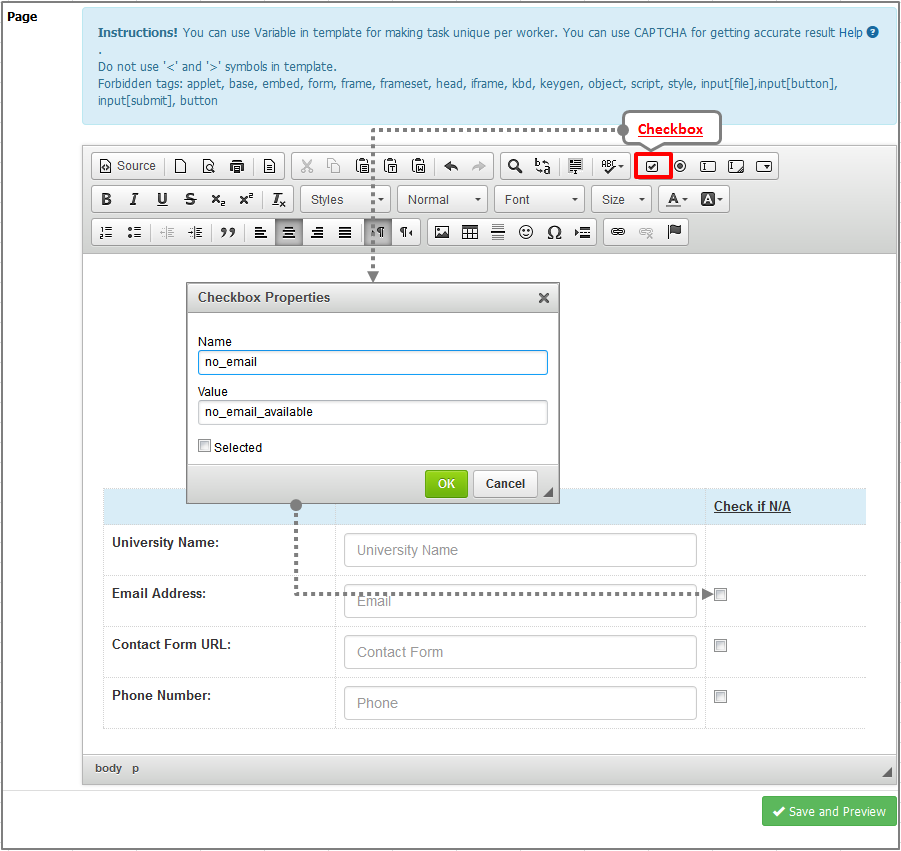

Visual Editor (“Checkbox”): Click Here

When working with “Text Field” and “Checkbox” forms, it’s very important to adequately label the Name (“Text Field”) and Name + Value fields (“Checkbox”) to avoid any potential overlap among collected data — keep in mind that campaign results will come out under given labels (look for a CSV example at the bottom).

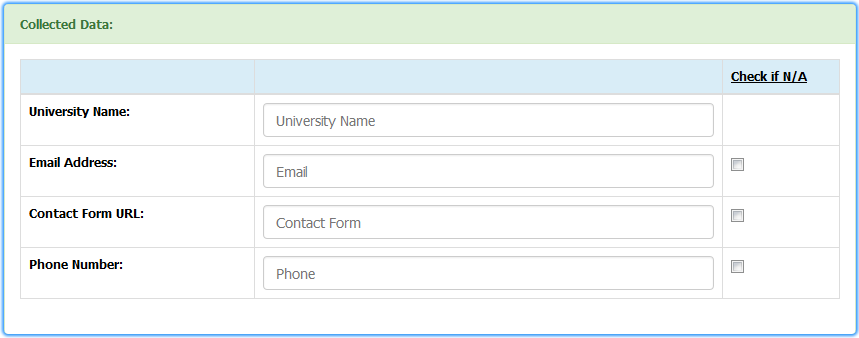

info panels

<!-- Collected Data -->
<div class="panel panel-success">
<div class="panel-heading">
<strong>Collected Data:</strong></div>
<div class="panel-body">
<table class="table table-bordered">

<thead>
<tr class="info">
<td></td>
<td></td>
<td class="col-lg-1"><u><b>Check if N/A</b></u>
</td>
</tr>
</thead>
<!-- University Name -->
<tbody>
<tr>
<td class="col-lg-2"><b>University Name:</b></td>
<td class="col-lg-4">
<input class="form-control" name="university" placeholder="University Name" size="25" type="text" />

</td>
<td class="col-lg-1"></td>
</tr>
<!-- End University Name -->
<!-- Email Address -->
<tr>
<td class="col-lg-2"><strong>Email Address:</strong></td>
<td class="col-lg-4">
<input class="form-control" name="email" placeholder="Email" size="25" type="email" />

</td>
<td class="col-lg-1">
<input name="no_email" type="checkbox" value="no_email_available" />

</td>
</tr>
<!-- End Email Address -->
<!-- Contact Form -->
<tr>
<td class="col-lg-2"><strong>Contact Form URL:</strong>
</td>
<td class="col-lg-4">
<input class="form-control" name="contact_form" placeholder="Contact Form" size="25" type="url" />

</td>
<td class="col-lg-1">
<input name="no_contact_form" type="checkbox" value="no_contact_form_available" />

</td>
</tr>
<!-- End Contact Form -->
<!-- Phone Number -->
<tr>
<td class="col-lg-2"><strong>Phone Number:</strong>
</td>
<td class="col-lg-4">
<input class="form-control" name="phone" placeholder="Phone" size="25" type="tel" />

</td>
<td class="col-lg-1">
<input name="no_phone" type="checkbox" value="no_phone_available" />

</td>
</tr>
<!-- End Phone Number -->
</tbody>
</table>
</div>
</div>
<!-- End Collected Data -->

(Coding Source: BS Tables, BS Grids, BS Panels, BS Form Inputs)


____________________________________________________

Ultimately, when our (TTV) campaign is finished and extracted data are there all results in CSV format are available by using the ‘Results in CSV’ link under the campaign title.

campaign img


Example of CSV with results (click image to enlarge):

campaign img




More (TTV) Tutorials are on the way… in the meantime you might try applying some of these codes we used above while making your own Template. For any help be always free to reach out to us. We will be happy to offer our assistance.

Till the next article stay up-to-date!
