Template Form Builder From JSON Schema

For you to easily understand this article, we will explain to you first what is JSON SchemaJSON (JavaScript Object Notation) Schema allows you to interpret and validate JSON documents. It is a great tool for ratifying the structure of JSON Data. JSON Data is an open-standard format that uses clear human-readable documents in an organized, user-friendly manner.

We have implemented template form builder from JSON Schema so you can easily create a template. If you are not comfortable or have less knowledge about HTML codes, this feature is an advantage for you. This is useful for templates that mostly use form elements like textbox, radio, checkbox, dropdown, etc. The feature will generate HTML code from JSON when imported to our TTV.

This is an example of JSON Schema elements:

json

When you import this JSON Schema in our TTV, it will be converted into HTML code and redirects you to “Create Template” page and this will be the outcome:

json1

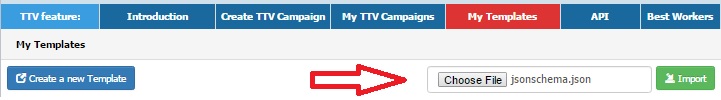

Importing or generating template using JSON Schema on TTV is simple, just go to “My Templates” page and click the “Choose File” button then Import. The file extension should be .json.

file

Supported data types are as follows (case-insensitive):

  • Textbox
  • Text
  • Email
  • Number
  • Checkbox
  • Radio
  • Textarea
  • Select

Required keys are as follows:

  • type – Example of type elements: text, textbox. email, number, checkbox, radio, select, textarea.
  • key  –  This is the internal name of the element, you must specify a unique name for all element keys.

To take a view of this, let us take this key, “price“, as an example:

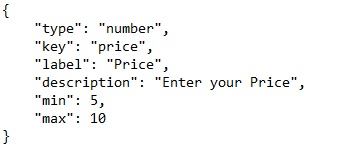

Our JSON Shema input:

price

When Imported to our TTV, generated HTML code will be:

html

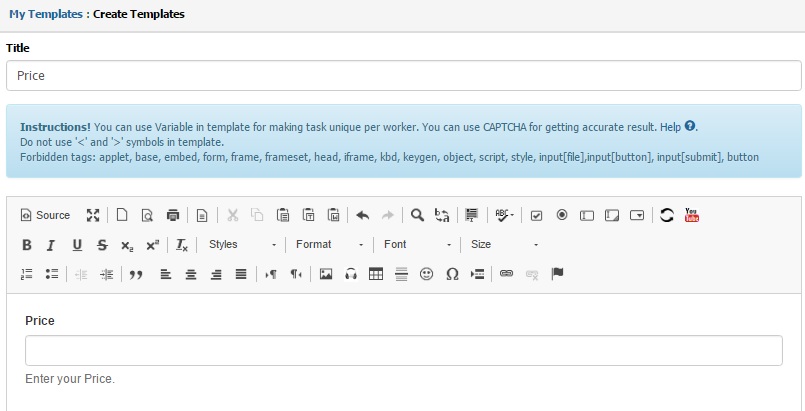

Outcome in the “Create a Template” page will appear like this:

outcome

You can also Export JSON Schema from our Default Templates. Just utilize the “Export” button from the “My Templates” page and choose the “Export as JSON Schema” from the dropdown selection.

export
